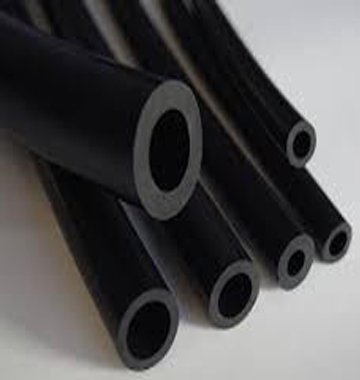

Sand Blast Hose
Application:
Sand Blasting Hose for conveying sand, shots or other abrasive materials used in ordnance factory, steel fabrication, shipyards, manufacturing workshops, heavy engineering industries, Gas cylinder manufacturing units etc.
Lining : Uniform seamless tube of natural/synthetic/blend rubber compound of high tensile strength, excellent abrasion resistance and free from air blister, porosity and other defects
Reinforcement : Plies of rubber impregnated woven textile or braiding of high strength natural/synthetic fibre.
Cover : Suitable rubber compound of cloth marked finish resistant to abrasion and weather.
Electric Bonding :; A strand of copper wire is embedded between the reinforcement plies to provide electrical continuity throughout the length of the hose
Pressures: Type 1 – W. P. 0.7 MPa & B. P. 3.5MPa. Type 2 – W. P. 1.0 MPa & B. P. 5.0MPa
| Nom. Bore (mm) | Tolerance on Nom. bore (mm) | Min. Thk. of Lining (mm) | Min. Thk. of Cover (mm) |
|---|---|---|---|
| 20.00 | ± 0.75 | 6.3 | 1.5 |
| 25.00 | ± 1.25 | 6.3 | 1.5 |
| 31.50 | ± 1.25 | 6.3 | 1.5 |
| 38.00 | ± 1.50 | 6.3 | 1.5 |
| 45.00 | ± 1.50 | 6.3 | 1.5 |
| 50.00 | ± 1.50 | 6.3 | 1.5 |
W.P. :Working Pressure, P.P. : Proof Pressure, B.P. : Burst Pressure, 1MPa : 10.2Kgf/Cm2 1Kgf/Cm2 :100KN/m2 Length : Mandrel made hose upto 15 mtr., Yarn braided hose in continues long length.
